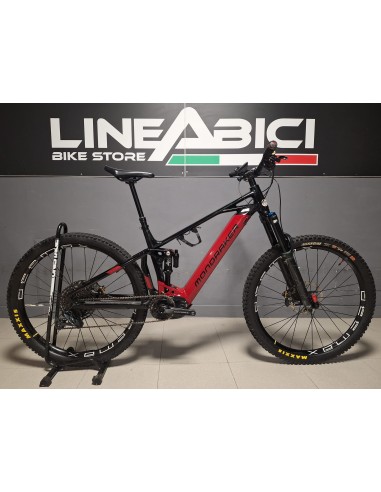

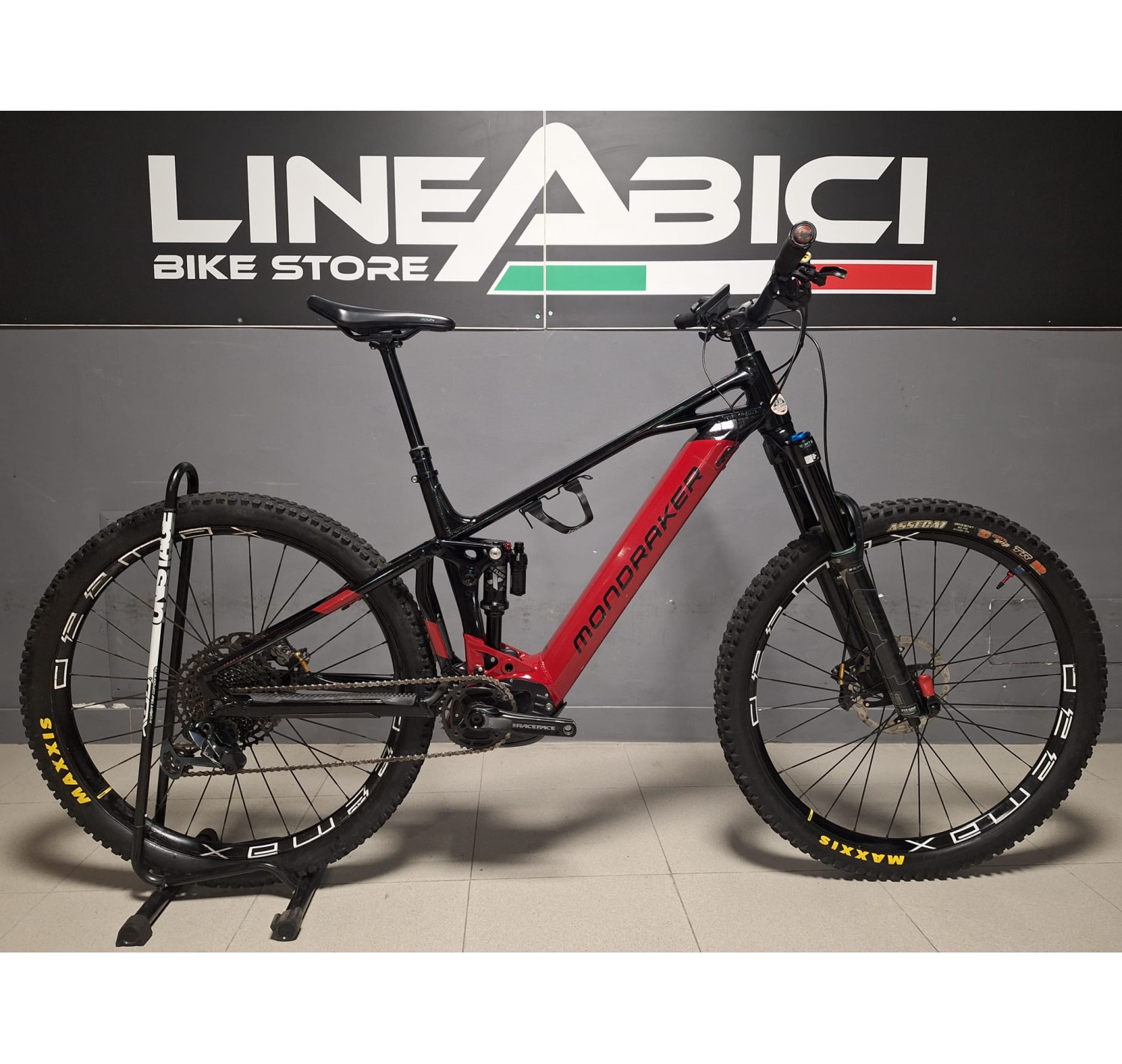

Mondraker Crafty R

TELAIO: Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery with integrated alloy cover, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable.

DIMENSIONI RUOTE: 29".

FORCELLA: Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload.

AMMORTIZZATORE POSTERIORE: Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings.

FRENI: SRAM G2 R, 4-piston caliper, Centerline IS 6 bolts one-piece rotor, steel-backed organic pads, 200 mm / 200 mm.

MANUBRIO: ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore.

SELLA: FIZIK Terra Aidon X5 145mm.

REGGISELLA: Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm.

GUARNITURA: Race Face Aeffect ebike, 165mm, Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD.

CAMBIO POSTERIORE: Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1.

COMANDO CAMBIO: Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click.

CASSETTA: Sram PG-1210, 11-50T, 12s.

CERCHI: Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes.

DISPLAY: Bosch Kiox 300.

BATTERIA: Bosch Powertube 750Wh.

MOTORE: Bosch Performance Line CX Cruise (25Km/h) GEN4 BS3, 85 Nm, Smart System.

PESO BICI: 25,1 kg.
