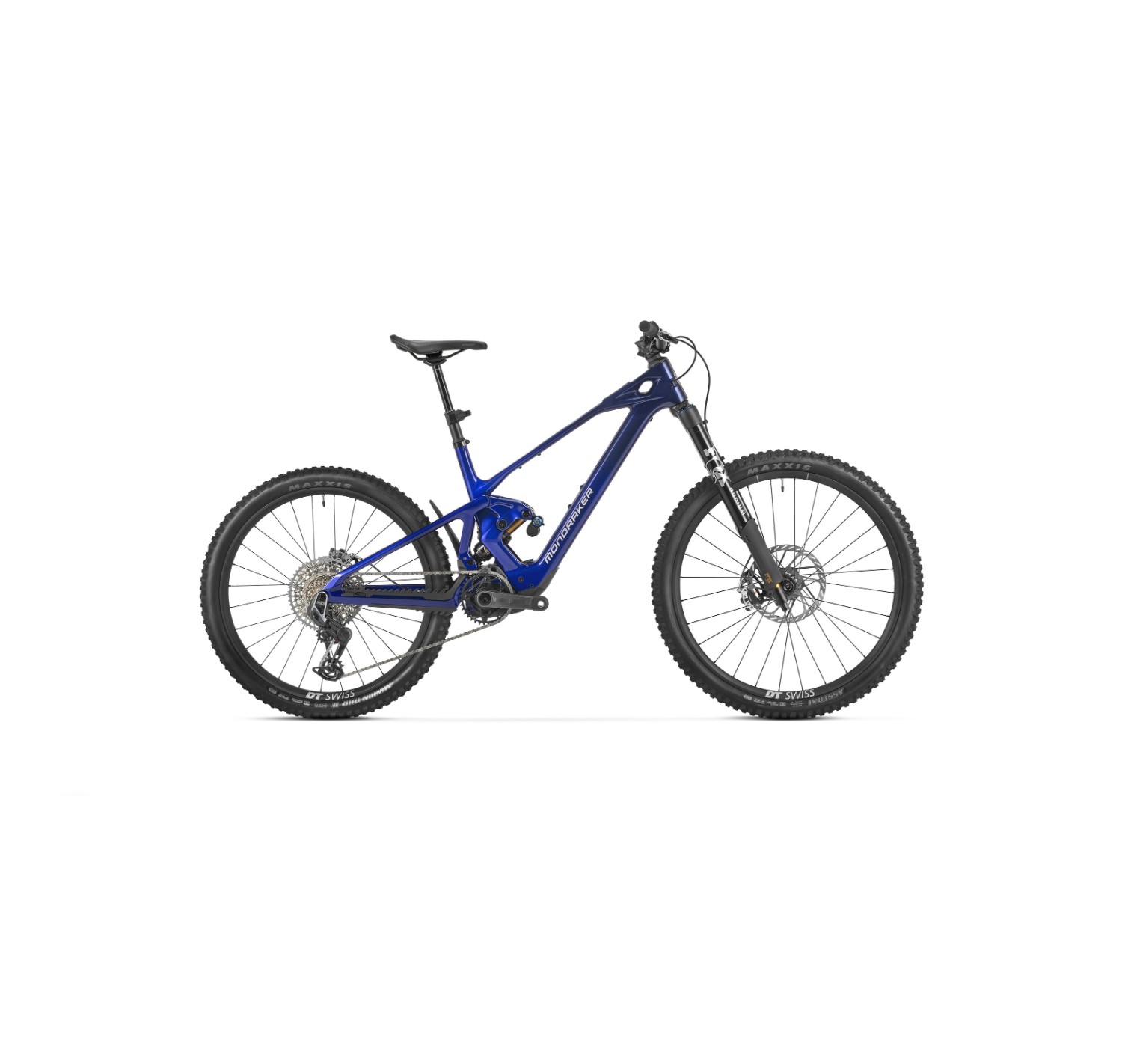

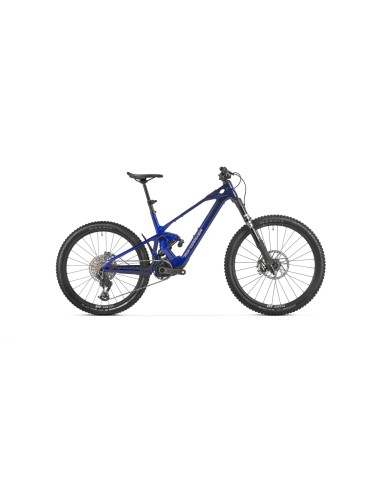

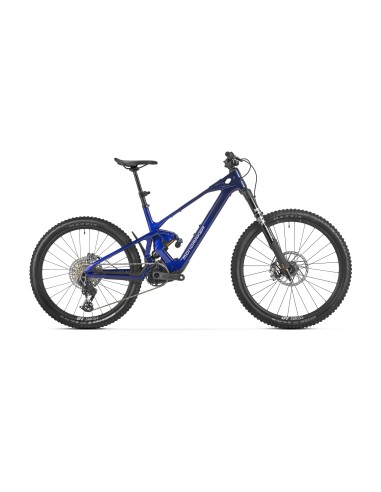

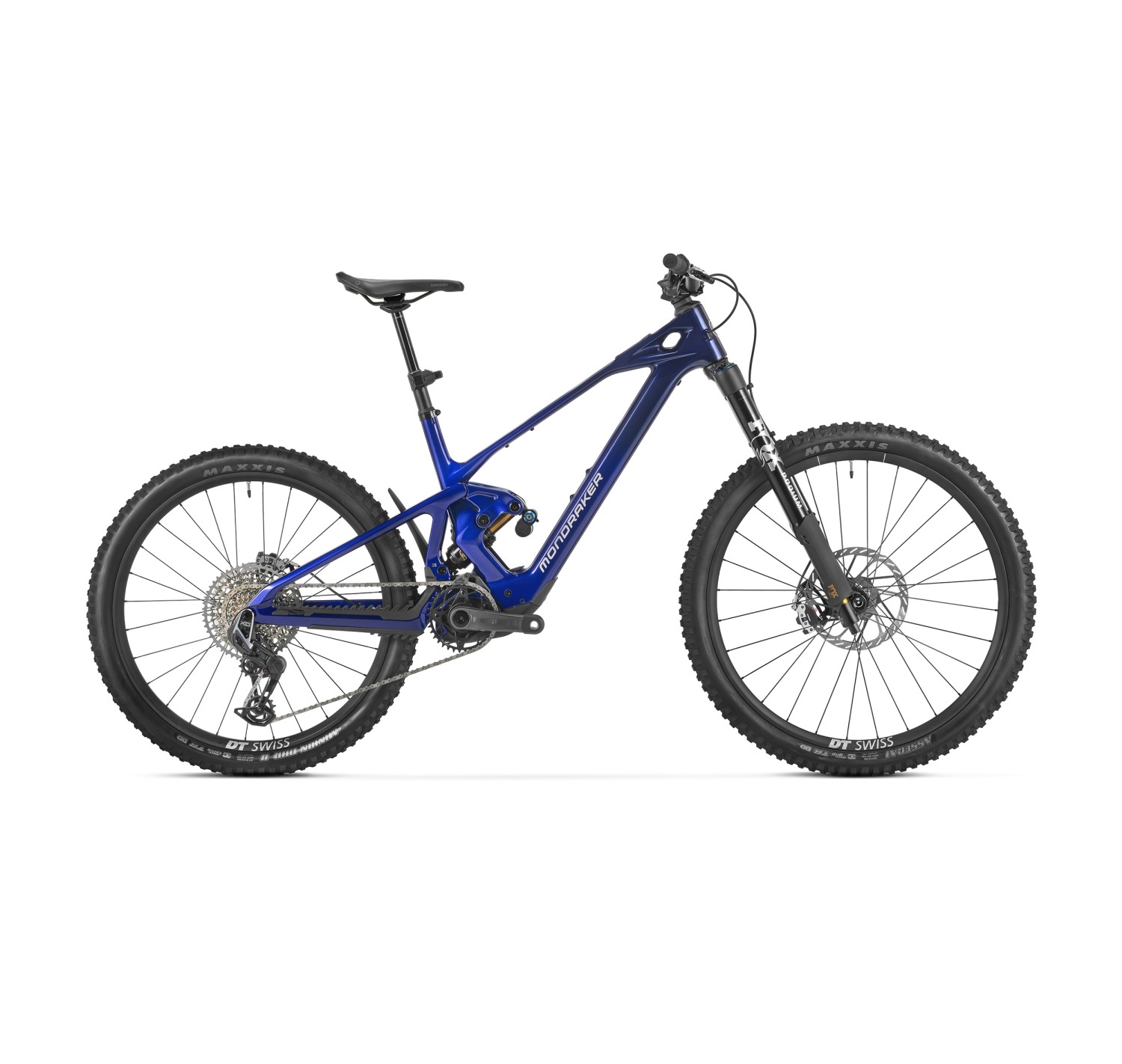

Mondraker Zendit XR Admiral Blue M/L

Telaio: Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Ammortizzatore: Fox Float X2 Factory Kashima 205x65mm. 2-positions lever compresion (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.

Regolazione ammortizzatore: CS 30 compression, 1,1 Bleed, RS40 rebound, Rezi B40, LML, Long MCU, 0 volume spacers.

Forcella: Fox Podium 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm thru axle, 44mm offset. High and low-speed compression, high and low-speed rebound, air preload.

Sterzo: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs, with blocklock: S, M / without blocklock: ML, L, XL.

Attacco manubrio: Onoff S9 30mm 0º, Full CNC, 31.8mm barbore.

Manubrio: Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.

Manopole: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size.

Reggisella: RockShox Reverb AXS, diameter 31.6mm, w/AXS Pod Controller Rocker Paddle. S size: 398.2x125mm, M size: 448.2x150mm,ML size: 498.2x175mm, L size: 548.2x200mm, XL size:548.2x200mm.

Sella: Ergon SM10 E-Mountain Black.

Freno anteriore: Sram Maven Ultimate, 18 millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Freno posteriore: Sram Maven Ultimate, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Leve Freno: Sram Maven Ultimate , Carbon lever, SwingLink and lever pivot bearings, tools-free reach adjust

Cerchi: DT Swiss, Carbon

 Raggi: DT Hybrid II Straightpull, w/DT ProLock Squorx ProHead aluminum nipples, Three-cross (1:1) pattern.

Asse mozzo anteriore: DT Swiss 350, 20x110mm Boost, Disc IS (6-bolt).

Asse mozzo posteriore: DT Swiss 350, 12x148mm Boost, Disc IS (6-bolt), Sram XD Steel (SRAM) freehub body, 72T Ratchet DEG DF System.

Pneumatico anteriore: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead

Pneumatico posteriore: Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead

Pedivelle: e*thirteen Helix Race Carbon e*spec. All sizes: 155mm

Guarnitura: Sram XX Eagle 36T T-Type, 104BCD, steel, CL55

Catena: Sram GX Eagle T-Type, 12s, w/Powerlock

Cambio - Posteriore: Sram X0 Eagle AXS T-Type, 12s

Comandi cambio: Sram Eagle AXS Pod Controller Rocker Paddle w/discrete clamp, 12s

Cassetta Pignoni: Sram XS 1275, 10-52T, T-Type, 12s

Forcellino: Not included - UDH compatible

Peso senza pedali: 23.1 Kg

Display: Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R)

Motore: Avinox Drive Unit

Batteria: Avinox 800Wh Battery / Avinox 12A Charger
